47 Gallon Replacement Fuel Tank | Joybonds Van Supply. Family adventure vans.

Description

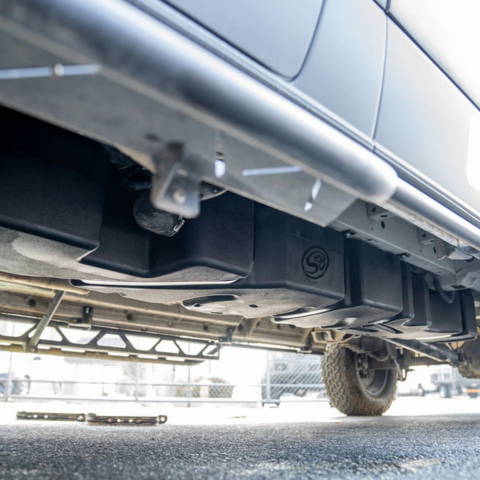

Plug and Play Installation: The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward (10.2 inches) and rearward (24.5 inches) of the original tank.

Note this tank will NOT fit:

144” Dually Vans
170” Crew Vans (1 row of seats)
With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please email Joybonds with your VIN to confirm if your van has J51.

When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.

Your Fuel Gauge Works as Normal

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The gauge will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (45 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

How the fuel gauge works video

Built to last. Backed by a lifetime warranty.

Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.

Product Installation Video:

Check out the video overview detailing the installation process and features and benefits for the 40 Gallon Replacement Fuel Tank Mercedes Sprinter:
Install Video Link

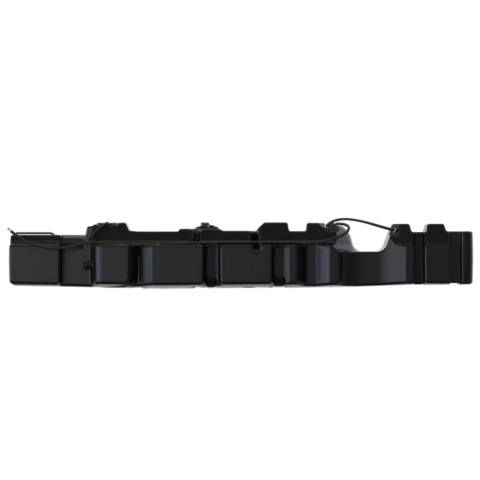

Tank Dimensions:

98.28″ X 15.41″ X 14.17″

Product Details:

Drain – No
Ground clearance compare to OE tank – 1.5″
OEM capacity – 24 Gallons
Sending unit – OE
Straps included – Yes
Sump – No
S&B Capacity (Approximate) – 47 Gallons
Tank type – Midship
Weight Dry – 45lbs

Vehicle Fitment:

Year	Make	Model	Engine
2019-2022	Mercedes	Sprinter	2.0L, Diesel
2019-2022	Mercedes	Sprinter	3.0L, Diesel
2019-2022	Mercedes	Sprinter	2.0L, Diesel
2019-2022	Mercedes	Sprinter	3.0L, Diesel
2020-2024	Winnebago	Navion	3.0L, Diesel
2020-2024	Winnebago	View	3.0L, Diesel
2022-2023	Winnebago	Adventure Wagon 70	3.0L, Diesel
2020-2023	Storyteller	Classic Mode 4×4	3.0L, Diesel
2021-2023	Storyteller	Stealth Mode 4×4	3.0L, Diesel
2020-2023	Storyteller	Beast Mode 4×4	3.0L, Diesel
2022-2023	Pleasure-Way	Rekon 4×4	3.0L, Diesel

Install Instructions: Link

Prop 65 Warning
MORE INFO at www.P65warnings.ca..gov
